    Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02

    Ask Lasest Price
    Brand Name : Yanyue
    Model Number : MIS-MATX02
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : motherboard 100000 pieces / month ; IPC 5000 sets / month
    Delivery Time : According to Quantity
    • Product Details
    • Company Profile

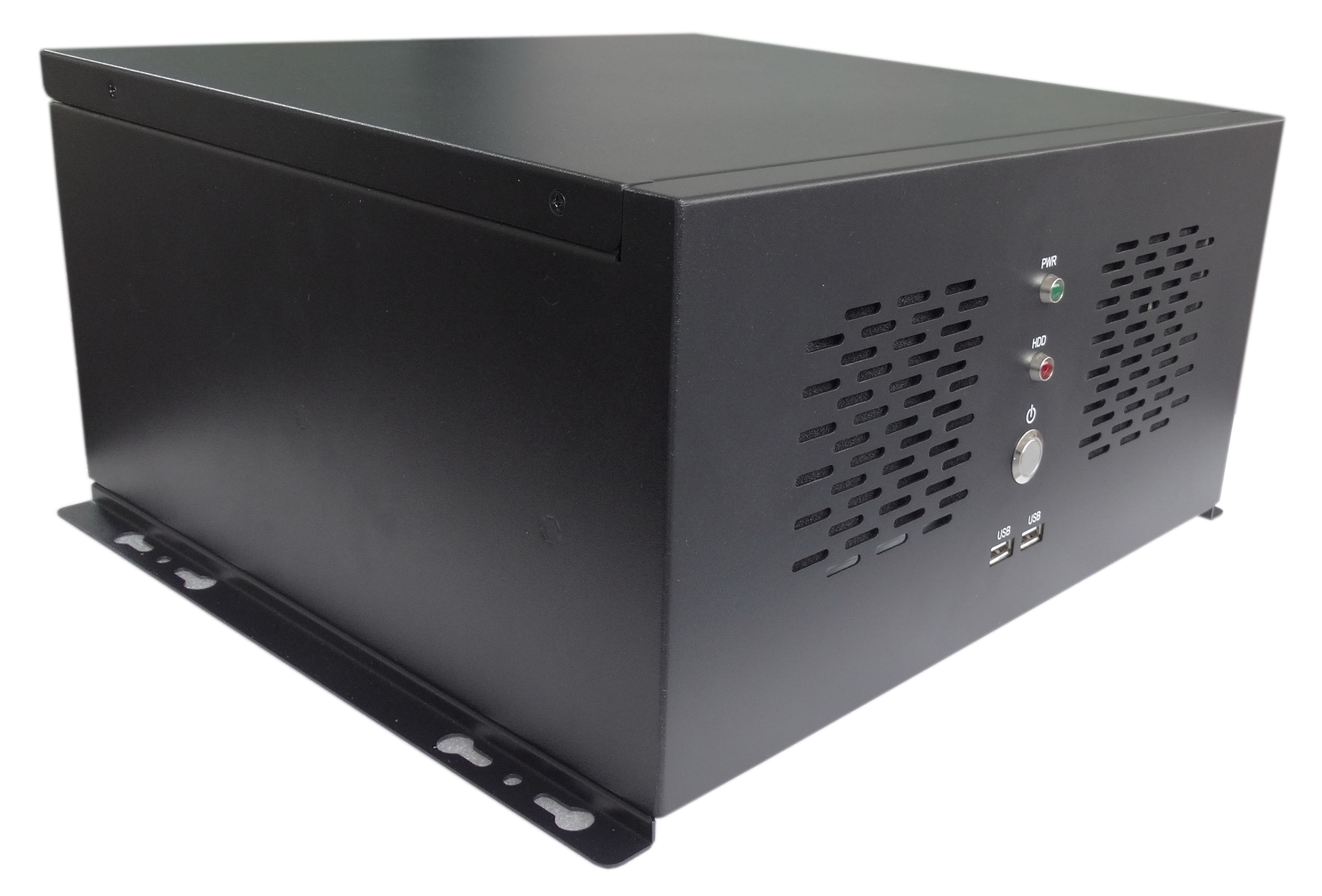

    Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02


    MIS-MATX02 Embedded industrial computer,1 PCI or PCIE extension,supporting i3/i5/i7 CPU,supporting multiple serial ports


    Features:

    ■ Heat Dissipation, Dust Prevention and Seismic Resistance

    ■ Supporting all Micro-ATX motherboards of Yanyue

    ■ Four extended slots

    ■ Extra 10 Series 1-Parallel 4 USB on the back

    ■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements


    Specification parametersOptional configuration
    ChassisAll-steel structure, powder-sprayed blackOptional industrial grey and other colors
    FrontPOWER/HDD indicator, power button switch, 2 suction fans, 2 USB2.0Customizable customer LOGO or other requirements
    BackMain board square hole, 4 expansion slots; 10 DB9, 1 DB25, 4 USB interface bitsCustomizable other interface bits
    Hard disk rackone 2.5 inch hard drive rackCan add 1 anti-seismic hard disk rack, support 3.5 inch or 2.5 inch hard disk
    Adapt motherboardInter B75//H81//H110 chip Micro-ATX_5 motherboardMiro-ATX motherboard of Yanyue is available
    CPU/GPUIntel i3 2120Support 3, 4, 6, 7 generations desktop CPU or board CPU
    Memory4G DDR3Optional 2G/8G/16G/32G memory
    Hard disk128G MSATAOptional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
    InterfaceAC input; 6USB (4 USB 3.0); 2RJ45 (gigabit); VGA; HVI, audio output; MIC input; 6COM (standard)Optional extraction of all interfaces on the chassis
    ExtansionPCIEx16; PCIEx4; 2PCIDepending on the expansion slot on the motherboard
    SizeNo bracket:320mm * 311mm * 158mmNet/Gross Weight4.5/5KG
    Industrial Power Supply200W Industrial 1U Power Supply
    Installation modeBracket installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
      Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration
    Installation Dimension Diagram Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02

    Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02Intel 4lan 10com Inter Embedded Industrial PC H110 Chip MIS-MATX02
