    IPPC-0803T1 8" Industrial Touch Panel PC Board Paste J1900 CPU Dual Network 4 Series 4USB

    Ask Lasest Price
    Brand Name : Yanyue
    Model Number : IPPC-0803T1
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : motherboard 100000 pieces / month ; IPC 5000 sets / month
    Delivery Time : According to Quantity
    • Product Details
    • Company Profile

    IPPC-0803T1 8" Industrial Touch Panel PC Board Paste J1900 CPU Dual Network 4 Series 4USB

    IPPC-0803T1 8" Touch Industrial Panel PC, Board paste J1900 CPU, Dual Network 4 Series 4USB

    Features:

    Ultra-low power, thin design

    ■ Aluminum alloy wire drawing panel

    ■ Waterproof grade IP65 for panel

    ■ Board sticker J1900 CPU

    Standardized Dual Network 4 Series 4 USB

    Various installation options

    Resistance Touch Screen, OEM Capacitance Screen


    Specification parametersOptional configuration
    Front panelAluminum alloy panel, the nature of wire drawing oxidationOptional black or other colors, optional sandblasting treatment
    Back chassis1.2mm Steel plate, SilverOptional industrial black or other colours
    Adapt motherboard3.5" J1900 Special motherboard
    LCD screen8” TFT,LED backlight; Resolution 1024*768; Lattice:0.297*0.297; Maximum color:16.7M; Brightness:250cd/㎡; Contrast:800:1; Response speed:16ms; MTBF:30,000h Visual angle :(+80° ~ -80°) (+80° ~ -80°);
    Touch screen5-wire resistance screenCustomizable Capacitance Screen
    CPU/GPUIntel J1900
    Memory4G DDR3Optional 2G/8G/16G DDR3 notebook memory
    Hard disk64G MSATAOptional 32G/128G/256G/512G Msata solid state hard disk
    InterfaceDC12V;4USB; 2RJ45(gigabit);VGA;HDMI,audio output; MIC input; 4COMCustomize 6USB or 6COM or 1LPT; Customize Phoenix Terminal, Customize Wide Voltage Input; Customize Wireless Antenna Hole Position
    Size210mm(length)* 164mm(width)* 57mm(thickness)Weight2/2.5KG
    Industrial Power Supply12V@5A adapter, Taiwan Qiaowei BrandOptional non-configuration
    Installation modeEmbedded screw installation; Embedded hook installation; VISA wall mounting installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
    IP LevelPanel IP64Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration

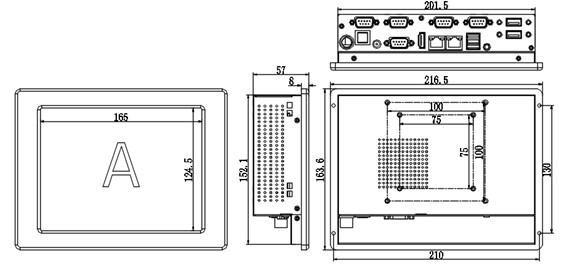

    Installation Dimension Diagram IPPC-0803T1 8" Industrial Touch Panel PC Board Paste J1900 CPU Dual Network 4 Series 4USB
