    NSP-1962-2F Network Firewall Hardware 1U 6LAN IPC 6 Intel Giga LAN Optional 2 Giga SFP

    Ask Lasest Price
    Brand Name : Yanyue
    Model Number : NSP-1962-2F
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Delivery Time : According to Quantity
    • Product Details
    • Company Profile

    NSP-1962-2F Network Firewall Hardware 1U 6LAN IPC 6 Intel Giga LAN Optional 2 Giga SFP

    NSP-1962-2F Network security platform, 1U 6LAN IPC, 6 Intel Giga LAN,Optional 2 Giga SFP

    Features:

    ■ Heat dissipation, dust prevention and earthquake resistance

    ■ 6 Intel Giga LAN,Opotional 2 Giga SFP

    ■ Support B75 / Z87 two 6-port mainboards

    ■ Supports I3 / i5 / i7 CPUs of 2, 3 and 4 generations

    ■ Support Xeon e3-1245v2 / V3 CPU

    ■ Aluminum alloy panel

    Specification parameterOptional configuration
    ChassisAluminum alloy panel, all steel structure at the back, powder jet blackOptional OEM other colors
    FrontAluminum alloy panel, power switch, RJ45 serial port, 2usb, power / HDD indicator light, 6 RJ45 giga LAN, 2 FSP SFPCustomer logo or other requirements can be customized,Customizable without SFP
    Back2 fans, 2usb, VGA, 1U redundant power supply
    Hard disk rackOne seismic hard disk rack supports one 3.5-inch or two 2.5-inch hard disks
    Adapter motherboardB75 6 LAN special main boardOptional Z87 6 LAN motherboard, can be customized with H110 6 LAN motherboard
    CPU/GPUIntel Xeon E3-1245 V2Supports i3/i5/i7 CPUs of 2,3 and 4 generations
    Memory8G DDR3Optional 2G/4G/16G memory
    Hard disk64G MSATA( Optional a ddition of 1T mechanical hard disk )Optional 32G/64G/256G Msata SSD; support 2.5-inch mechanical hard disk
    ExtendAC input; 6 RJ45 network ports; RJ45 serial port; 1vga; 2usb
    Size483mm * 350mm * 45.5mmNet/gross weight3.5/4KG
    Industrial power supply350W 1U redundant power supplyCustomized other power supply
    Installation modeRack installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
      Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration

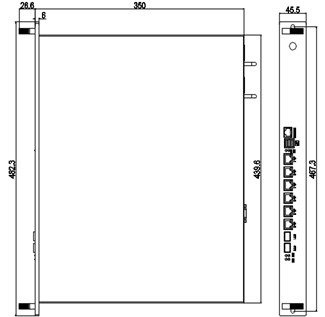

    Installation Dimension Diagram NSP-1962-2F Network Firewall Hardware 1U 6LAN IPC 6 Intel Giga LAN Optional 2 Giga SFP

    NSP-1962-2F Network Firewall Hardware 1U 6LAN IPC 6 Intel Giga LAN Optional 2 Giga SFPNSP-1962-2F Network Firewall Hardware 1U 6LAN IPC 6 Intel Giga LAN Optional 2 Giga SFP
