    15 Inch Industrial Touch Panel PC Fanless Design Resistive Screen 2LAN 4COM 4USB

    Ask Lasest Price
    Brand Name : Yanyue
    Model Number : IPPC-1503FL
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : motherboard 100000 pieces / month ; IPC 5000 sets / month
    Delivery Time : According to Quantity
    • Product Details
    • Company Profile

    15 Inch Industrial Touch Panel PC Fanless Design Resistive Screen 2LAN 4COM 4USB

    IPPC-1503FL 15" touch industrial Panel PC, Fanless design, multiple board paste I3/I5/I7 U series CPU motherboard for choice

    Features:

    Ultra-low power, Fanless design

    ■ Support Generations I3/I5/I7 U series CPU

    2LAN 4COM 4USB, other interfaces OEM

    Resistance Touch Screen

    ■ Aluminum alloy panel drawing process

    ■ Waterproof grade of IP64 panel

    Supporting solid hard disk and 2.5 inch mechanical hard disk


    Specification parametersOptional configuration
    Front panelAluminum alloy panel, the nature of wire drawing oxidationOptional black or other colors, optional sandblasting treatment
    Back chassis1.2mm steel plate, silver, sandblasting nature of heat dissipating finsOptional industrial black or other colours
    Adapt motherboardlow power ITX motherboardsAll low power ITX motherboards of Yanyue are optional
    LCD screen15"TFT, LED backlight; Resolution 1024*768; Lattice: 0.297*0.297; Maximum color: 16.2M; Brightness: 300cd/; Contrast: 1500:1; Response speed: 35ms; MTBF: 50,000h visual angle: (+85 -85) (+85 -85);
    Touch screen5-wire resistance screenCustomizable Capacitance Screen
    CPU/GPUIntel i5 6360UOptional j1900/j4125 and Generations i3/i5/i7 U series CPU
    Memory4G DDR3Optional 2G/8G/16G DDR3 notebook memory
    Hard disk128G MSATAOptional 32G/64G/256G Msata solid state hard disk; 2.5" 500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk

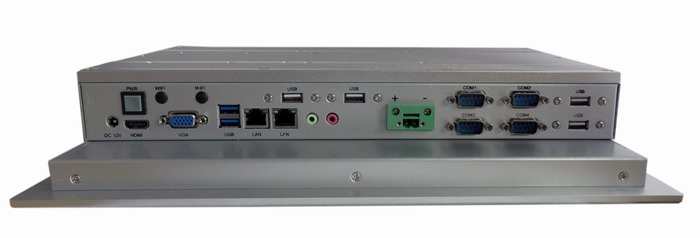

    InterfaceDC12V; 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 2 antenna aperture; 4COM; DC interpolationOptional 8USB or 6COM or 1LPT; plug-in location can be customized Phoenix terminal, can customize wide-voltage input
    Size380mm(length)* 300mm(width)* 65mm(thickness)Weight5/6KG
    Industrial Power Supply12V@5A adapter, Taiwan Qiaowei BrandOptional non-configuration
    Installation modeEmbedded screw installation; Embedded hook installation; VISA wall mounting installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
    IP LevelPanel IP64Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration

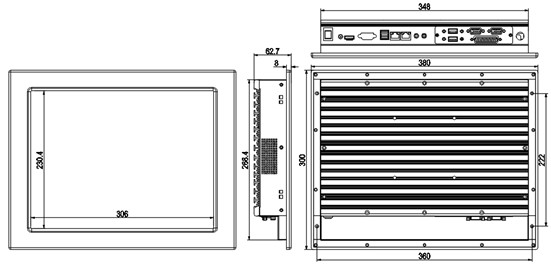

    Installation Dimension Diagram 15 Inch Industrial Touch Panel PC Fanless Design Resistive Screen 2LAN 4COM 4USB

    15 Inch Industrial Touch Panel PC Fanless Design Resistive Screen 2LAN 4COM 4USB
