    15.6 Inch Industrial Panel PC Capacitive Screen I3 I5 I7 U Series CPU 2LAN 4COM 4USB

    Ask Lasest Price
    Brand Name : Yanyue
    Model Number : IPPC-1506TW
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : motherboard 100000 pieces / month ; IPC 10000 sets / month
    Delivery Time : According to Quantity
    • Product Details
    • Company Profile

    15.6 Inch Industrial Panel PC Capacitive Screen I3 I5 I7 U Series CPU 2LAN 4COM 4USB

    IPPC-1506TW 15.6" touch industrial Panel PC, multiple board paste I3/I5/I7 U series CPU motherboard for choice, capacitive touch screen

    Features:

    ■ Ultra-low power design

    ■ Aluminum alloy Panel, Drawing process

    ■ Waterproof grade of IP65 panel

    ■ Support Generations I3/I5/I7 U series CPU

    ■ 2LAN 4COM 4USB, other interfaces OEM

    ■ Supporting solid hard disk and 2.5" mechanical hard disk

    ■ Multiple installation options

    ■ CapacitanceTouch Screen

    1366*768 and 1920*1080 Resolution


    Specification parametersOptional configuration
    Front panelAluminum alloy panel, black oxide by wire drawingOptional natural color or other color, optional sandblasting treatment
    Back chassis1.2mm steel plate, blackOptional silver or other colors
    Adapt motherboardlow power ITX motherboardsAll low power ITX motherboards of Yanyue are optional
    LCD screen15.6"TFT, LED backlight; resolution 1366 * 768(1920*1080 optional); lattice: 0.297 * 0.297; maximum color: 16.2M; brightness: 300cd/; contrast: 800:1; response speed: 35ms; MTBF: 50, 000h visual angle: (+80 - 80) (+80 - 80);
    Touch screenBlack Edge Capacitance Screen
    CPU/GPUIntel i5 6200UOptional J1900/3, 4, 6, 7 U Series CPUs
    Memory8G DDR3Optional 2G/8G/16G DDR3 notebook memory
    Hard disk256256G MSATAOptional 32G/64G/128G/512G Msata solid state hard disk; 2.5" 500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
    InterfaceDC12V; 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 2 antenna aperture; 4COM; DC interpolationOptional 8USB or 6COM or 1LPT; plug-in location can be customized Phoenix terminal, can customize wide-voltage input
    Size405mm (length)* 252mm (width)* 56mm (thickness)Weight5/6KG
    Industrial Power Supply12V@5A adapter, Taiwan Qiaowei BrandOptional non-configuration
    Installation modeEmbedded screw installation; Embedded hook installation; VISA wall mounting installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
    IP LevelPanel IP65Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration

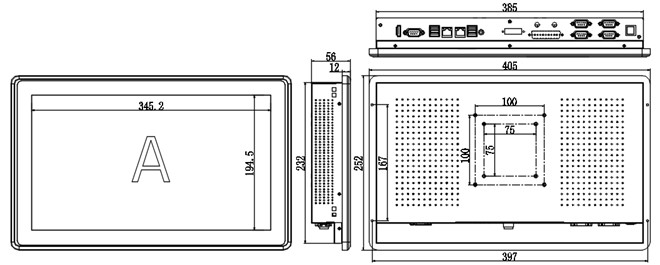

    Installation Dimension Diagram 15.6 Inch Industrial Panel PC Capacitive Screen I3 I5 I7 U Series CPU 2LAN 4COM 4USB

    15.6 Inch Industrial Panel PC Capacitive Screen I3 I5 I7 U Series CPU 2LAN 4COM 4USB
