    PLM-1703TW 17.3" Wide Industrial Touch Screen Monitor / Industrial Touch Screen Display

    Ask Lasest Price
    Brand Name : Yanyue
    Model Number : PLM-1703TW
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Delivery Time : According to Quantity
    • Product Details
    • Company Profile

    PLM-1703TW 17.3" Wide Industrial Touch Screen Monitor / Industrial Touch Screen Display

    PLM-1703TW 17.3" Wide Touch industrial display


    Features:


    ■ Aluminum alloy wire drawing panel

    ■ Waterproof grade IP65 for panel

    ■ DC12V power input

    ■ Resistance touch screen, OEM capacitive screen

    ■ Various installation options


    Specification parametersOptional configuration
    Front panelAluminum alloy panel,silvery;Optional black or other colors
    Back chassis1.2mm Steel plate, Silver;OSD menuOptional industrial black or other colours
    LCD screen17.3 "TFT, LED backlight; resolution 1600 * 900; lattice: 0.2388 * 0.2388; maximum color: 262K; brightness: 250cd / ㎡; contrast: 650:1; response speed: 7ms; MTBF: 15000h viewing angle: (+ 45° - 45°) (+ 45° - 45°);
    Touch screen5-wire resistance screenCustomizable capacitor screen
    InterfaceDC12V; VGA; USB
    Size426mm(length)* 259mm(width)* 45mm(thickness)Weight4.5/5KG
    Industrial Power Supply12V@5A industrial adapter
    Installation modeEmbedded screw installation; Embedded hook installation; VISA wall mounting installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
    IP LevelPanel IP65Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration

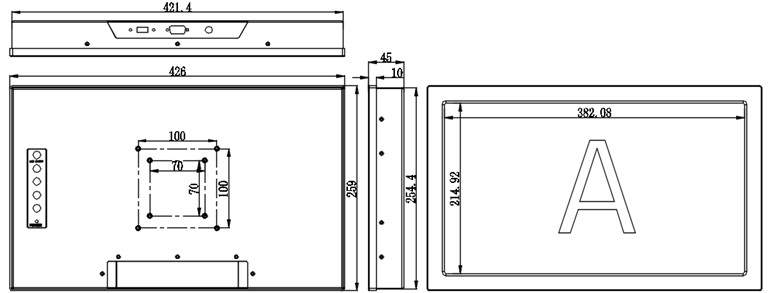

    Installation Dimension Diagram PLM-1703TW 17.3" Wide Industrial Touch Screen Monitor / Industrial Touch Screen Display

    PLM-1703TW 17.3" Wide Industrial Touch Screen Monitor / Industrial Touch Screen DisplayPLM-1703TW 17.3" Wide Industrial Touch Screen Monitor / Industrial Touch Screen Display
