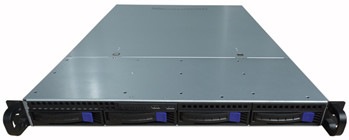

SVR-1UC612 19 "standard on shelf 1U server, supporting e5-2600 series V3 / V4 Xeon CPU

Features:

■ C612 chip, support E5-2600 series V3 / V4 CPU

■ Support 4 hot swappable 3.5-inch hard disks

■ Dual Intel gigabit network port, 6usb

■ IPMI management port (RJ45 form)

■ Flexible configuration, flexible configuration of CPU, memory and hard disk according to customer requirements

Specification parameter							Optional configuration
Chassis	All steel structure, color metal natural color, front black						Other colors can be customized
Front	4 hot plug 3.5-inch hard disk bits (SATA interface); 2 USB (1 USB 3.0); power switch; reset switch; power / HDD indicator
Back	1U power supply; DB9 serial port; 4USB; IPMI (RJ45); 2rj45 gigabit network port; VGA display; 1 horizontal expansion slot
Hard disk rack	4 hot plug 3.5-inch hard disk racks
Adapter motherboard	C612 dedicated server motherboard
CPU/GPU	E5 2630 V3						Optional all E5 2600 series V3/V4 CPUs; optional dual CPUs
Memory	8G DDR4						Optional 16g/32g/64g/128G memory
Hard disk	1T 3.5 mechanical hard disk						Optional up to 4 2T/4T/6T/8T/10T hard disks
Interface	AC input; DB9 serial port; 4USB; IPMI (RJ45); 2rj45 gigabit network port; VGA display; 1 horizontal expansion slot
Extend	1 PCIe extension
Size	Excluding handle:482*650*44.7						Net/gross weight	8/9KG
Industrial power supply	200W 1U Industrial Power						Optional other higher power or redundant power supply
Installation mode	19 inch rack
Work and Environment
Working temperature	0～60℃		Storage temperature		-40～75℃		Environmental humidity	0~90% air humidity, no condensation
			Vibration		5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A				Shock		10g acceleration, 11ms duration

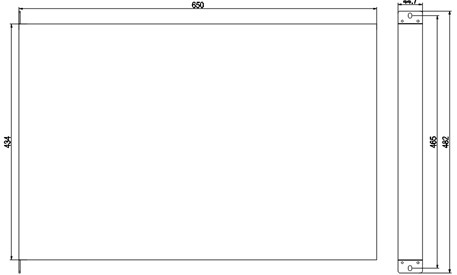

Installation Dimension Diagram
