    Embedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial Ports

    Ask Lasest Price
    Brand Name : Yanyue
    Model Number : MIS-ITX01C
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : motherboard 100000 pieces / month ; IPC 5000 sets / month
    Delivery Time : According to Quantity
    • Product Details
    • Company Profile

    Embedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial Ports

    MIS-ITX01C Embedded industrial computer, 1 PCI or PCIE extension, supporting i3/i5/i7 CPU, supporting multiple serial port

    Features:

    ■ Heat Dissipation, Dust Prevention and Seismic Resistance

    ■ Support all Mini-ITX motherboards of Yanyue

    ■ Supporting a PCI or PCIEx16 extension

    ■ 9 additional antenna slots and 2 additional antenna slots can be introduced later.

    ■ Up to 12 serial ports and 14 USB

    ■ Dust-proof sponge can be replaced and cleaned without shutting down the machine


    Specification parametersOptional configuration
    ChassisAll steel structure, powder-sprayed blackOptional industrial grey and other colors
    FrontPOWER/HDD Indicator Lamp, Power Button Switch,Two suction fans can replace and clean dust-proof sponge without shutting downCustomizable customer LOGO or other requirements
    BackMain board large square hole, 1 expansion slot; 9 DB9, 1 DB25, 2 USB interface bits, 2 WIFI antenna slots, ,1 DB37Customizable other interface bits
    Hard disk rack1 anti-seismic hard disk rack, supporting one 3.5 inch or two 2.5 inch hard disk
    Adapt motherboardIntel B75/H81/H110 chip MINI-ITX motherboardOptional all ITX motherboard of Yanyue
    CPU/GPUIntel i3 2120Support 3, 4, 6, 7 generations desktop CPU or board CPU
    Memory4G DDR3Optional 2G/8G/16G notebook memory
    Hard disk128G MSATAOptional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
    InterfaceAC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 2VGA; HDMI, audio output; MIC input; 6COM (standard)Optional extraction of all interfaces on the chassis
    Extension1 PCI ExtensionThree, four, six and seven generations all support one PCIEx16 extension.
    SizeNo bracket:241mm * 223mm * 130mmNet/Gross Weight3.5/4KG
    Industrial Power Supply200W Industrial 1U Power Supply
    Installation modeBracket installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
      Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration

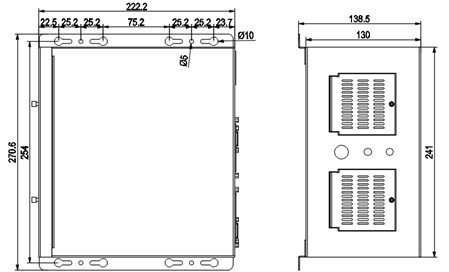

    Installation Dimension Diagram Embedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial Ports

    Embedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial PortsEmbedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial PortsEmbedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial PortsEmbedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial Ports


    Our Advantages

    1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

    2.Our products are 100% original and have strict QC inspection before shipment.

    3.Professional and efficient sales team to serve for you diligently.

    4.Sample order is welcomed and will be delivered within 1-3 days.

    6.We support Trade Assurance to ensure On-time shipment and product quality.

    7.We provide OEM/ODM service according to your requirements.

    8.We provide 2 years maintenance warranty for our products.
