    Embedded Fanless Box PC 1037U CPU 1 PCI Expansion 2LAN 6COM 6USB

    Ask Lasest Price
    Brand Name : Yanyue
    Model Number : MIS-8106
    Certification : CE, FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : motherboard 100000 pieces / month ; IPC 5000 sets / month
    Delivery Time : According to Quantity
    • Product Details
    • Company Profile

    Embedded Fanless Box PC 1037U CPU 1 PCI Expansion 2LAN 6COM 6USB

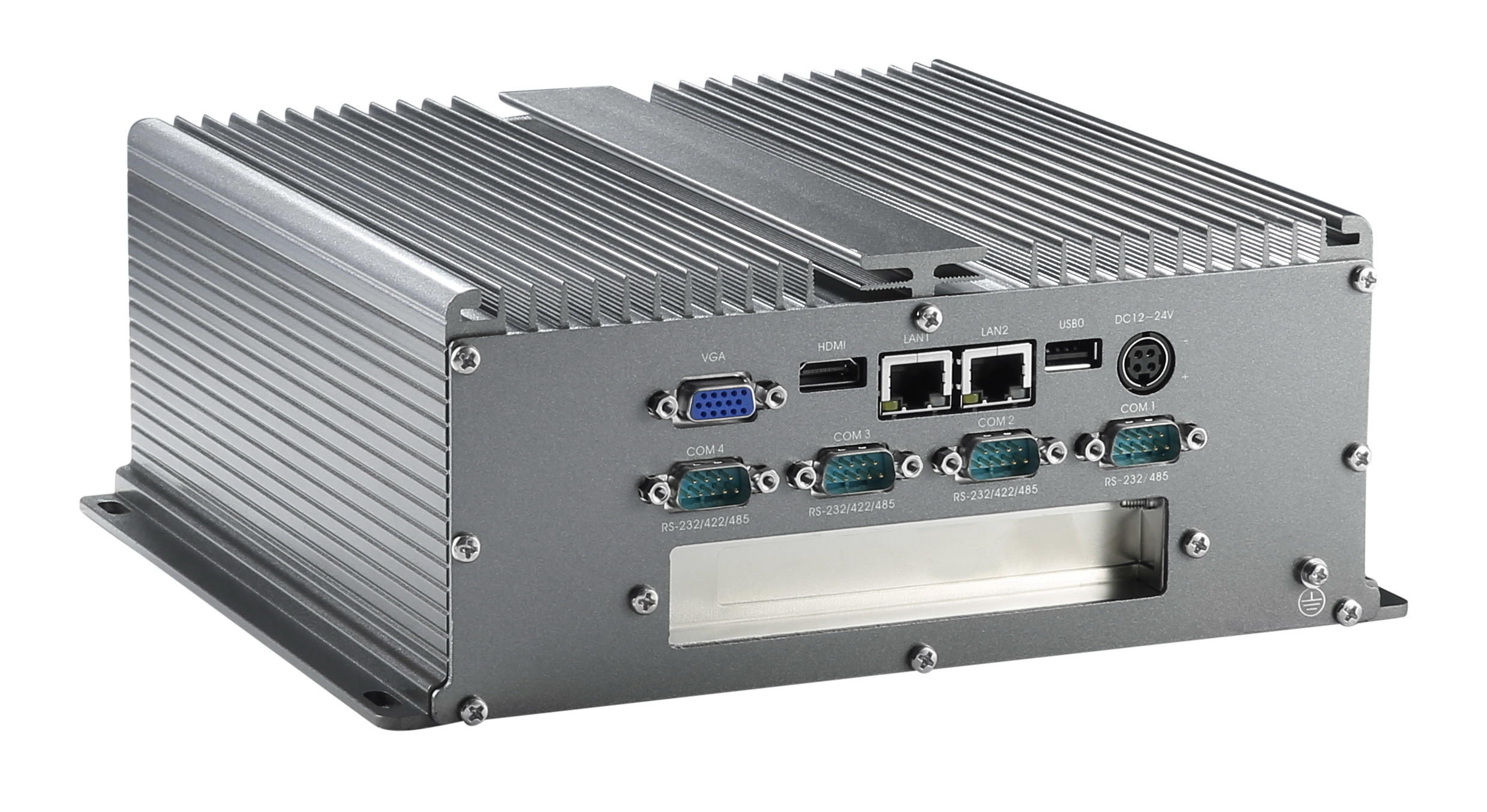

    MIS-8106 All-aluminium Fanless Embedded Industrial Computer, Box PC, 1037U CPU, 1 PCI Extension​, 2LAN 6COM 6USB

    Features:


    ■ All-aluminium toothed fanless design, fully sealed

    ■ Modular Wireless Material Design

    ■ Plate paste 1037U CPU

    ■ 2LAN 6COM 6USB, 1 PCI Extension

    ■ Support MSATA + 2.5 inch dual hard disk

    ■ Supporting VGA+HDMI Independent Double Display


    Specification parametersOptional configuration
    ChassisAll-aluminium toothed chassis, sandblasted titanium oxide ashOther colours can be customized
    FrontPower switch; Power/HDD/LAN1/LAN 2 indicator; Mic in+Line out; PS/2; 2COM RS232; 5USB2.0
    BackDC12-24V input; VGA+HDMI display; 1USB; 2RJ45 Gigabit Network port; 3RS232/422/485 + 1RS232/485 serial port; 1 PCI extension
    Hard disk rack1 hard disk rack, supporting 1 2.5 inch hard disk
    Adapt motherboardDedicated motherboard
    CPU/GPUIntel 1037U
    Memory4G DDR3Optional 8G DDR3 notebook memory
    Hard disk64G MSATAOptional 32G/128G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
    Size246*209*93mmNet/Gross Weight3/3.5KG
    Industrial Power SupplyStandardized 12V@5A adapter
    Installation modeBracket installation
    Work and Environment
    Working temperature0~60℃Storage temperature-40~75℃Environmental humidity0~90% air humidity, no condensation
      Vibration5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
    EMCGB9254-2008 class AShock10g acceleration, 11ms duration
    Installation Dimension Diagram Embedded Fanless Box PC 1037U CPU 1 PCI Expansion 2LAN 6COM 6USB

    Embedded Fanless Box PC 1037U CPU 1 PCI Expansion 2LAN 6COM 6USBEmbedded Fanless Box PC 1037U CPU 1 PCI Expansion 2LAN 6COM 6USB
