ATX-B360AH26D Industrial ATX Motherboard, Intel@ PCH B360 Chip, 2LAN/6COM/13USB, 7Slot(3PCI)
Industrial ATX Motherboard Detailed Product Description
| CPU/GPU: | 8/9th Generation Intel® Core™ Processor I7/ I5/ I3, Pentium®/
Celeron® (Socket LGA1151) | Chipset: | Intel@ PCH B360 |
|---|
| Memory: | 2x DDR4 DIMM Sockets, Supporting Up To 32GB SDRAM | Storage: | 2×SATA,1×MSATA |
|---|
| Ethernet: | 2 Gigabit LAN | USB2.0: | 7 |
|---|
| USB3.0: | 6 | GPIO: | 8bits |
|---|
| Graphics Interface: | VGA,HDMI | Display: | CPU Integrated Graphics |
|---|
| Audio: | Realtek HD Audio |
|---|
| High Light: | intel motherboard,energy efficient motherboard |
|---|
ATX-B360AH26D Industrial ATX Motherboard, Intel@ PCH B360 Chip, 2LAN/6COM/13USB, 7Slot(3PCI)
Industrial ATX Motherboard Feature
■ Support LGA1151 socket for 8/9th Gen. Intel® CoreProcessor
■ 2 Intel Gigabit LAN
■ VGA, HDMI ,DP Graphics Interface
■ 6COM RS232
■ 7USB2.0, 6USB3.0
■ 256 grade Watchdog Timer
■ 8 bits GPIO(4 In, 4 Out)
■ 1PCIEx16; 2PCIEx4;1PCIEx1;3PCI
ATX-B360AH26D Industrial ATX Motherboard, Intel@ PCH B360 Chip, 2LAN/6COM/13USB, 7Slot(3PCI)
Industrial ATX Motherboard Specification
| Industrial ATX Motherboard Specification |
| CPU/GPU | 8/9th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/
Celeron®
(Socket LGA1151) |
| Chipset | Intel@ PCH B360 |
| Memory | 4x DDR4 DIMM sockets, supporting up to 64GB SDRAM |
| Storage | 4×SATA 3.0;1×M.2 NFGG |
| Audio | Realtek HD Audio |
| Ethernet | 2 Intel Gigabit LAN |
| Display | CPU integrated graphics |
| Graphics Interface | VGA, HDMI,dp |
| USB2.0 | 7 |
| USB3.0 | 6 |
| GPIO | 8bit |
| COM | 6COM RS232 |
| Backplane I / O | PS2+2USB3.0, COM+DP, VGA+HDMI, 2 RJ45 LAN+4USB3.1, Line-out+Mic-in |
| Board I / O Pin | 7USB2.0 , 5COM , front audio , CLR_CMOS , CPU fan power , System
fan power , GPIO, Front panel , 24P+8P ATX |
| Expand | 1PCIEx16; 2PCIEx4; 1PCIEx1;3PCI |
| System | Support Windows(WIN 10...), Linux |
| Industrial ATX Motherboard Mechanical & Environmental |
| Power supply | ATX | Heat dissipation | Fan | Size(L×W) | 305mm×244mm |
| Working temperature | -15~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation |
| Packing list | ATX-B360AH26D Industrial ATX Motherboard ×1, SATA Data wire ×1,
Interface bezel×1, COM wire x2 |
ATX-B360AH26D Industrial ATX Motherboard, Intel@ PCH B360 Chip, 2LAN/6COM/13USB, 7Slot(3PCI)

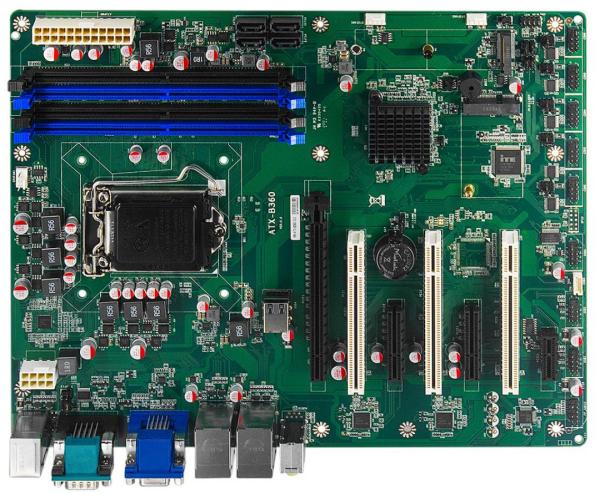

Industrial ATX Motherboard Front View
ATX-B360AH26D Industrial ATX Motherboard, Intel@ PCH B360 Chip, 2LAN/6COM/13USB, 7Slot(3PCI)

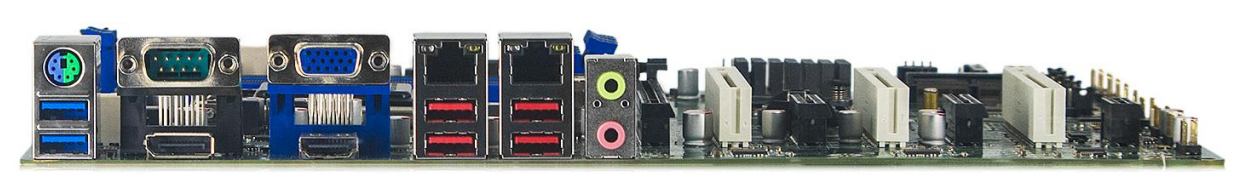

Industrial ATX Motherboard Interface View
