Fanless embedded IPC,Soldered On-board N2840/J1900/J6412 CPU,2LAN
2COM 6USB
Feature:
■ Soldered on-board Intel J1900/N2840/J6412 CPU
■ 2 gigabit network ports,2COM 6USB
■ 22 audio holes
■ Supports VGA+HDMI independent dual display
■ Flexible configuration, optional memory hard drive of various
capacities
■ DC12V input
Fanless embedded IPC,Soldered On-board N2840/J1900/J6412 CPU,2LAN
2COM 6USB
| Specification parameters | Optional configuration |
| Chassis | All aluminium construction, sandblasted titanium black | Customizable silver |
| Front | With indicator switch；2audio hole；4USB | N2840/J1900 have 1×USB3.0; J6412 has 2×USB3.0 |

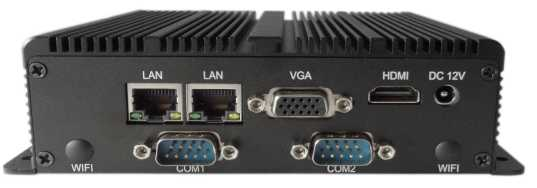

| Back | DC IN；VGA+HDMI display； 2RJ45 gigabit LAN；2COM; 2 antenna holes | |
| Hard disk rack | The motherboard supports MSATA SSD | |
| Adapt motherboard | Special soldered on-board J1900/N2840/J6412 motherboard | |
| CPU/GPU | Intel J1900 | Optional 2840, J6412 |
| Memory | 4G DDR3 | Optional 2G/8G/16G notebook memory |
| Hard disk | 64G MSATA | Optional 32G/128G/256G Msata SSD |
| Size | 138*125*45mm(Dimensions without bracket) | Net/Gross Weight | 1/1.5KG |
| Industrial Power Supply | Standardized 12V adapter | |
| Installation mode | Bracket installation |
| Work and Environment |
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation |
| | | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration |
| Installation Dimension Diagram |  |
Fanless embedded IPC,Soldered On-board N2840/J1900/J6412 CPU,2LAN
2COM 6USB
Fanless embedded IPC,Soldered On-board N2840/J1900/J6412 CPU,2LAN
2COM 6USB
Fanless embedded IPC,Soldered On-board N2840/J1900/J6412 CPU,2LAN
2COM 6USB
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in
Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2
years, we can repair it for free, but charge for parts is needed.
please contact us at any time when necessary. We besides our
professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface
ports and OS, the package box and housing(outer shell)as you wish,
prices will be varied according to the quantity and specification.
